RNK Model Sludge Dewatering Unit
A new type of dewatering unit that combines a newly developed dewatering aid and NKS type sludge dewatering Press.
A combination of NKS type multi-plate screw press dewatering press and newly developed dehydration aid 「NT Powder」
The new dewatering unit 「RNK series」has achieved an amazing ultra-low water content and greatly improved the water quality of the desorbed liquid.
NT Powder is a fibrous dehydration aid derived from cellulose that can absorb not only TS and SS contained in sludge, but also oil, nitrogen, phosphorus, heavy metals, and odor components, and treat it as a sludge cake.
The equipment itself is easier to use and more compact by providing a buffer tank at the bottom of the dewatering Press.
Click here for information on NT powder
| Dewatering Performance・Features | |||
|---|---|---|---|
| Compact design and easy installation | Achieved space saving. After installation, all you need to do is connect the piping and power supply. | ||
| Energy Saving, low Noise, low Vibration | It uses a low-speed rotating motor, giving consideration to the environment and safety. It uses less electricity and does not require washing water, resulting in energy savings that can reduce running costs. | ||
| Free Maintenance | The auto-cleaning mechanism prevents clogging and allows unattended operation 24 hours a day. | ||
| Processing Data | |||
|---|---|---|---|
| Reference① Live Stock Sludge(Excess Sludge) | |||
| Reference② Sewage(Digested Sludge) | |||
| Reference③ Live Stock Sludge(Digested Sludge) | |||

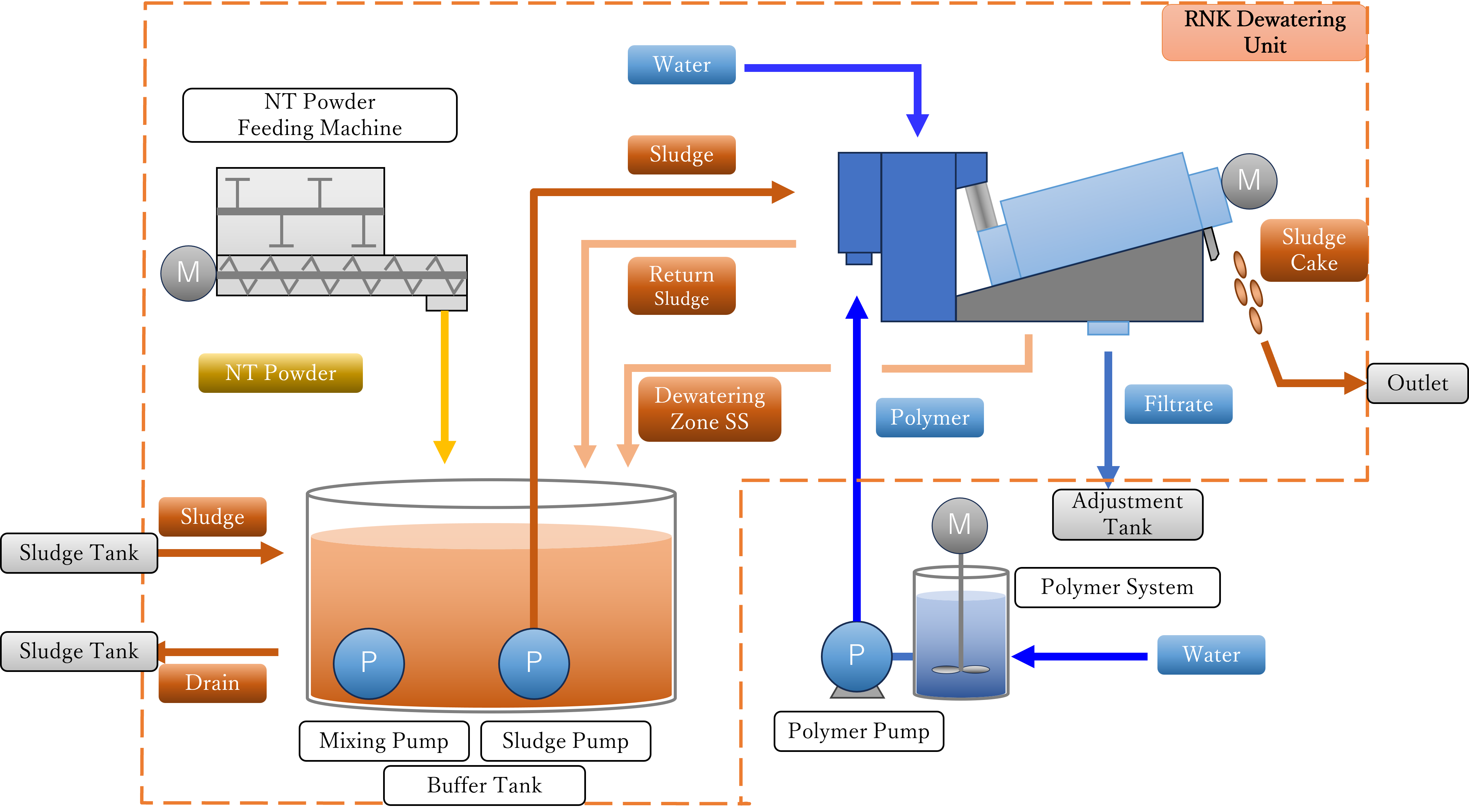

Dewater FlowDewater Flow
Movie
Sludge Cake
Filtrate
NT Powder
Product Information
| Model | Cylinder Number | Total Power(kW) | Capacity(kg-DS/h) Sludge(TS) | |
|---|---|---|---|---|
| 1.0％以下 | 1.5％以上 | |||
| RNK-251 | Φ250×1 | 2.4 | ～15 | ～30 |
| RNK-301 | Φ300×1 | 4.4 | ～30 | ～60 |
| RNK-351 | Φ350×1 | 4.95 | ～50 | ～100 |
| RNK-401 | Φ400×1 | 7.85 | ～80 | ～160 |
| ※Available for 200V~400V, CE Marking, UL Spec. | ||||
| Model | Cleaning Water (ℓ/h) | Size(mm) | Weight(kg) | |||
|---|---|---|---|---|---|---|
| L | W | H | Dry | Weight | ||
| RNK-251 | 35 | 2930 | 1830 | 2100 | 1050 | 1750 |
| RNK-301 | 70 | 3410 | 2240 | 2420 | 1600 | 3215 |
| RNK-351 | 45 | 4150 | 2770 | 2610 | 2570 | 9200 |
| RNK-401 | 90 | 4860 | 3090 | 3090 | 3770 | 12850 |
