NKS Model Screw Press
High Performance Screw Press
By newly improving the main components, we have achieved higher dewatering performance than conventional products.
| Dewatering Performance・Features | |||
|---|---|---|---|
| Compact design easy installation | Achieved space saving. After installation, all you need to do is connect the piping and power supply. | ||
| Energy Saving low Noise low Vibration | It uses a low-speed rotating motor, giving consideration to the environment and safety. It uses less electricity and does not require washing water, resulting in energy savings that can reduce running costs. | ||
| Free Maintenance | The auto-cleaning mechanism prevents clogging and allows unattended operation 24 hours a day. | ||

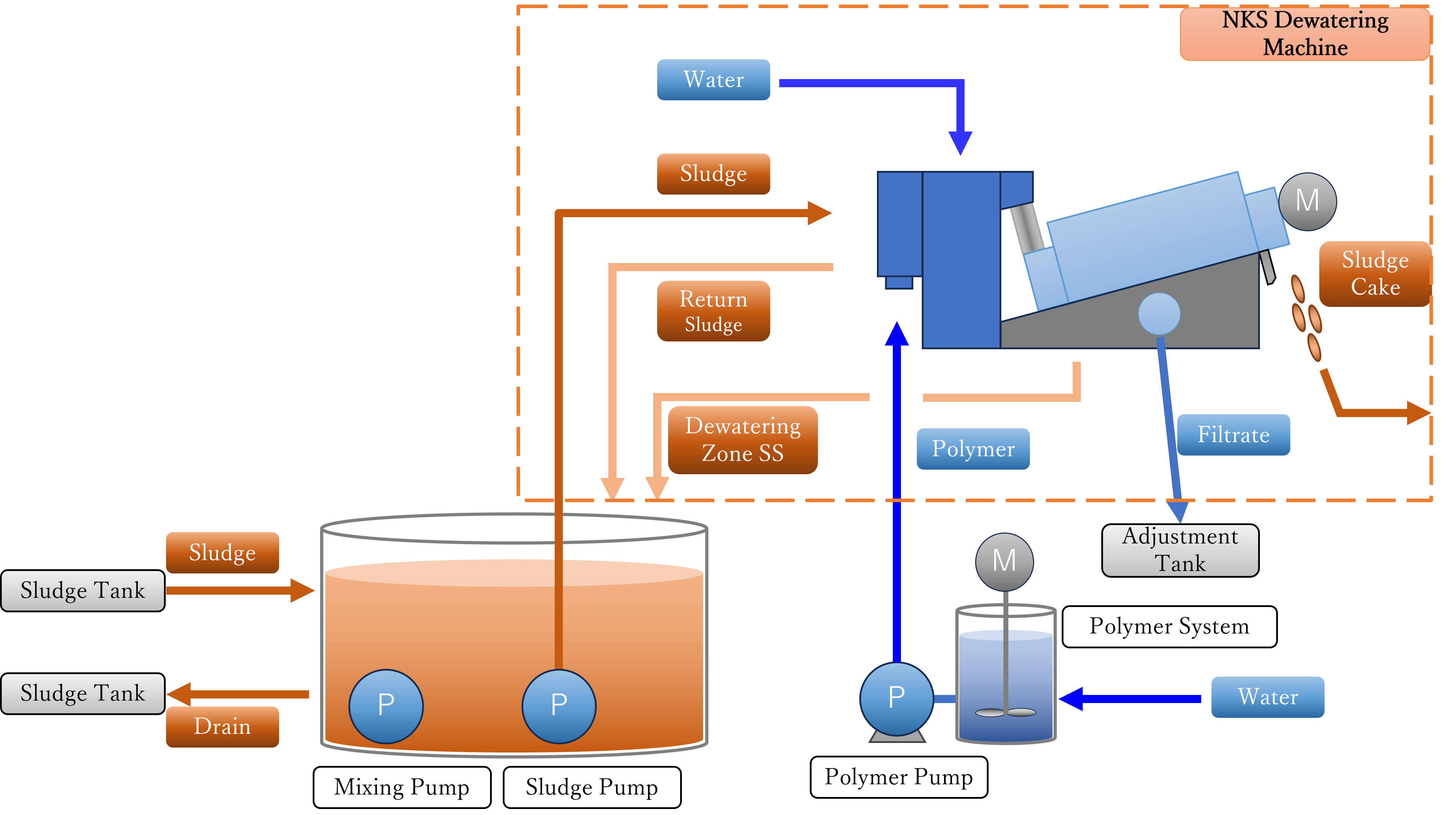

Dewatering Flow
Movie
Sludge Cake
Filtrate
Product Information
| Model | Cylinder Number | Total Power(kW) | Capacity(kg-DS/h) Sludge (TS) | |
|---|---|---|---|---|
| 1.0％以下 | 1.5％以上 | |||
| NKS-131 | Φ130×1 | 0.3 | ～5 | ～10 |
| NKS-132 | Φ130×2 | 0.5 | ～10 | ～20 |
| NKS-251 | Φ250×1 | 0.6 | ～15 | ～30 |
| NKS-252 | Φ250×2 | 1.0 | ～30 | ～60 |
| NKS-301 | Φ300×1 | 1.5 | ～30 | ～60 |
| NKS-302 | Φ300×2 | 2.25 | ～60 | ～120 |
| NKS-303 | Φ300×3 | 3.0 | ～90 | ～180 |
| NKS-304 | Φ300×4 | 3.75 | ～120 | ～240 |
| NKS-351 | Φ350×1 | 1.5 | ～50 | ～100 |
| NKS-352 | Φ350×2 | 2.25 | ～100 | ～200 |
| NKS-353 | Φ350×3 | 3.0 | ～150 | ～300 |
| NKS-354 | Φ350×4 | 3.75 | ～200 | ～400 |
| NKS-401 | Φ400×1 | 3.0 | ～80 | ～160 |
| NKS-402 | Φ400×2 | 4.5 | ～160 | ～320 |
| NKS-403 | Φ400×3 | 7.5 | ～240 | ～480 |
| NKS-404 | Φ400×4 | 9.0 | ～320 | ～640 |
| ※Available for 200V~400V, CE Marking, UL Spec. | ||||
| Model | Cleaning Water (ℓ/h) | Size(mm) | Weight(kg) | |||
|---|---|---|---|---|---|---|
| L | W | H | Dry | Operation | ||
| NKS-131 | 35 | 1870 | 730 | 1150 | 250 | 400 |
| NKS-132 | 70 | 2000 | 960 | 1230 | 350 | 600 |
| NKS-251 | 45 | 2690 | 880 | 1500 | 500 | 810 |
| NKS-252 | 90 | 2810 | 1120 | 1530 | 800 | 1320 |
| NKS-301 | 45 | 3310 | 1000 | 1580 | 750 | 1280 |
| NKS-302 | 90 | 3460 | 1200 | 1580 | 1340 | 2230 |
| NKS-303 | 135 | 3630 | 1620 | 1690 | 1750 | 3030 |
| NKS-304 | 180 | 4000 | 2040 | 1710 | 2150 | 4150 |
| NKS-351 | 45 | 3610 | 1070 | 1760 | 1150 | 1920 |
| NKS-352 | 90 | 3820 | 1410 | 1770 | 1950 | 3210 |
| NKS-353 | 135 | 4120 | 1770 | 1770 | 2800 | 4830 |
| NKS-354 | 180 | 4320 | 2280 | 1770 | 3700 | 6520 |
| NKS-401 | 90 | 4550 | 1160 | 2130 | 2050 | 3430 |
| NKS-402 | 180 | 4870 | 1680 | 2130 | 3850 | 6650 |
| NKS-403 | 270 | 4790 | 2520 | 2130 | 5400 | 9710 |
| NKS-404 | 360 | 4840 | 3120 | 2130 | 7000 | 12960 |
